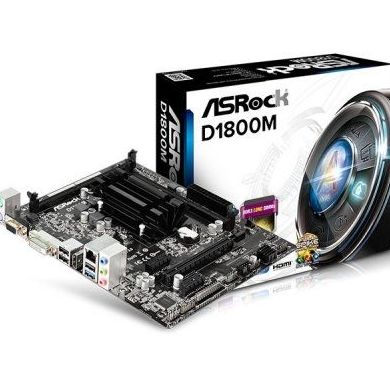

Marca Asrock

Modelo D1800M

(90-MXGUK0-A0UAYZ)

Plataforma - Formato m-ATX

Chipset - Intel® H81 Express

CPU Soportados - Intel® Dual-Core Processor J1800 (2.41 GHz)

(integrado)

Memoria - Dual Channel DDR3/DDR3L Memory Technology

- 2 x DDR3/DDR3L DIMM Slots

- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB*

Slots Expansión - 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)

- 2 x PCI Express 2.0 x1 Slots

Gráficos - Intel® 7th generation (Gen 7) graphics

- DirectX 11.0, Pixel Shader 5.0

- Three graphics output options: D-Sub, DVI-D and HDMI

- Soporta HDMI Technology with max. resolution up to 1920x1200 @ 60Hz

- Soporta DVI-D max. 1920x1200 @ 60Hz

- Soporta D-Sub max. 1920x1200 @ 60Hz

- Soporta Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with

HDMI Port (Compliant HDMI monitor is required)

- Soporta HDCP with DVI-D and HDMI Ports

- Soporta Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Puertos E/S, Conectores E/S panel trasero:

- 1 x PS/2 Keyboard

- 1 x D-Sub

- 1 x DVI-D

- 1 x HDMI

- 3 x USB 2.0 (Soporta ESD Protection (ASRock Full Spike Protection))

- 1 x USB 3.0 (Soporta ESD Protection (ASRock Full Spike Protection))

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

E/S Internos:

- 1 x Print Port

- 1 x COM Port

- 1 x TPM

- 1 x Chassis Intrusion

- 1 x CPU Fan (3-pin)

- 1 x Chassis Fan (3-pin)

- 1 x 24 pin ATX Power

- 1 x Front Panel Audio

- 2 x USB 2.0 (Support 3 USB 2.0 ports) (Soporta ESD Protection (ASRock Full Spike

Protection))

Otras Características Audio

- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

- Soporta Surge Protection (ASRock Full Spike Protection)

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111GR

- Soporta Wake-On-WAN

- Soporta Wake-On-LAN

- Soporta Lightning/ESD Protection (ASRock Full Spike Protection)

- Soporta LAN Cable Detection

- Soporta Energy Efficient Ethernet 802.3az

- Soporta PXE

SATA

- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Certificationes

- FCC, CE, WHQL

- ErP/EuP ready (ErP/EuP ready power supply is required)

Fecha Revisión 18-06-2014 por FE4
